Beneath the ground lies a tangled network of cables and pipes. As urban spaces – and the ground beneath them – grow more congested, advanced underground detection systems have become essential for reducing risk before breaking ground.

By integrating the patented Equalised Scrambling Technology (EsT), DS4000 detects underground utilities more clearly at both shallow and deeper levels, revealing all potential threats and difficultly seen underground objects such as fibre optic cables.

See more, Reach deeper
The Leica DS4000 Utility Detection Radar can identify underground assets up to 60% deeper than traditional systems, helping teams work more efficiently, confidently, and safely.

Reliable utility detection for everyone – simple detection workflow and results that anyone can understand

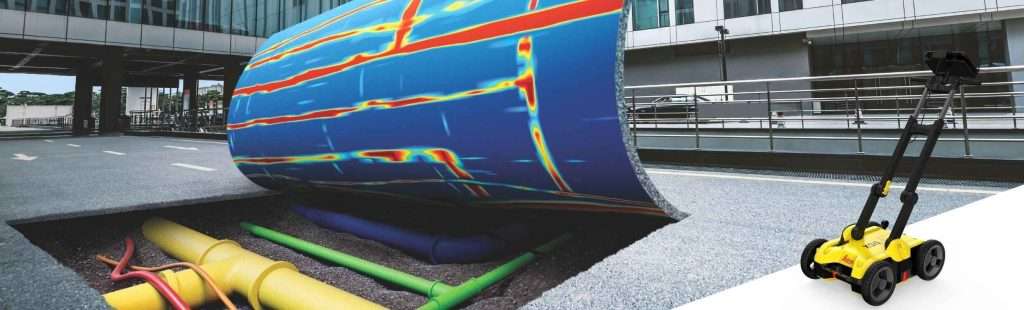

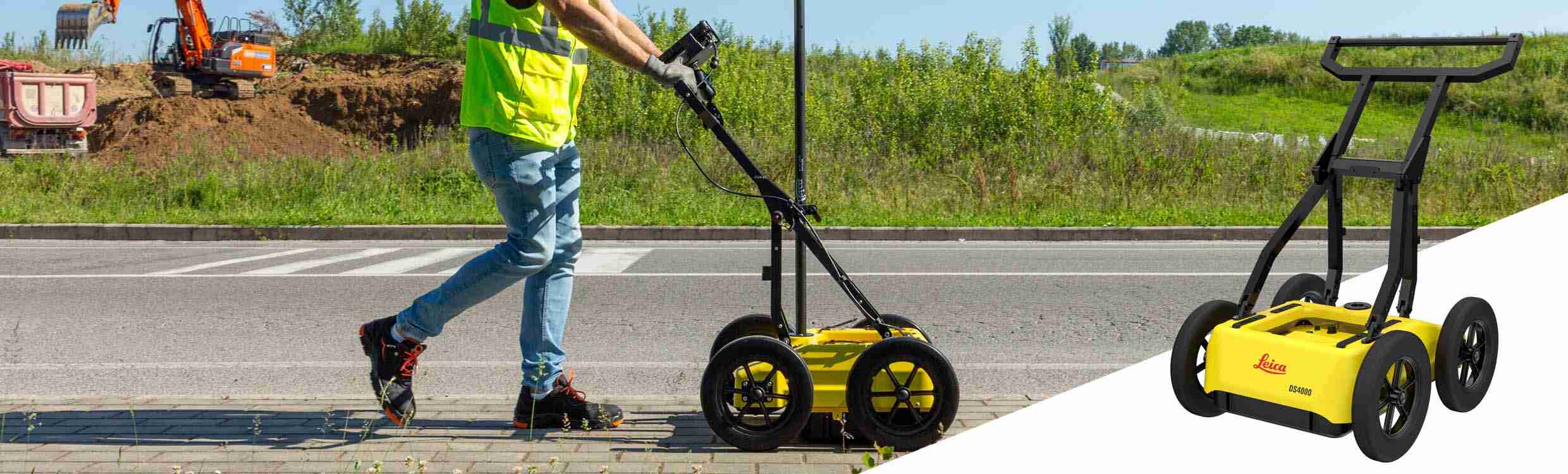

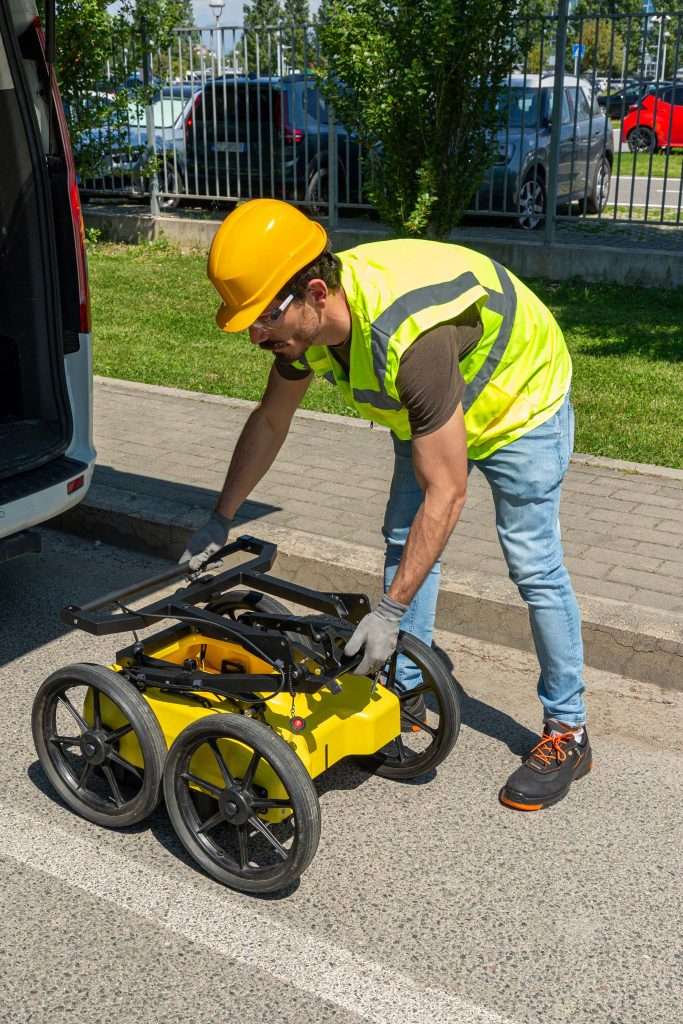

For utility repair and maintenance, civil engineering and surveying companies, the Leica DSX utility detection solution, consisting of a portable hardware with intuitive software allows to easily locate, visualize and map utilities. Unlike any other ground penetrating radar (GPR) system, the Leica DSX maximizes productivity with cutting-edge software that automates data analysis and creates a 3D utility map on the field.

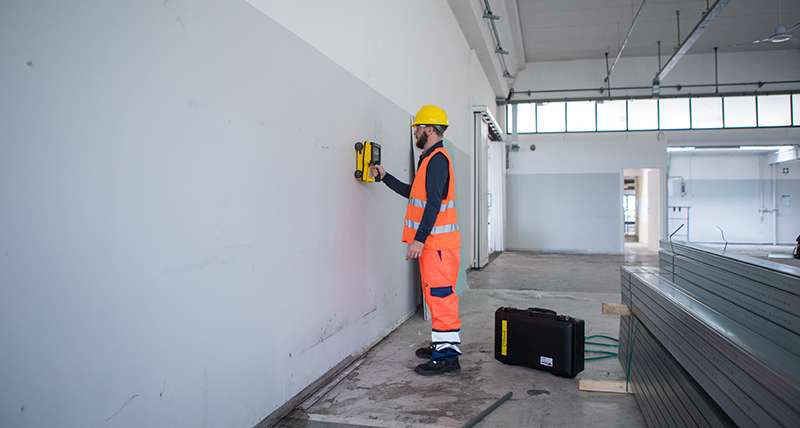

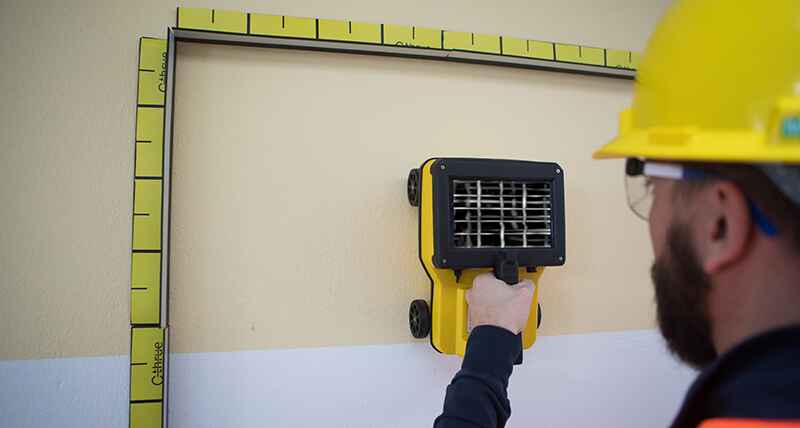

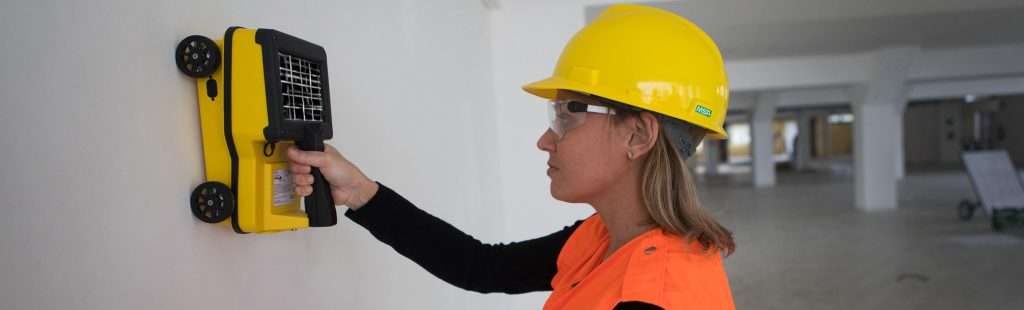

The concrete scanner C-thrue is an easy-to-use and robust solution to see through concrete structures and reveal true data that lead to optimal decision-making. The solution is suited for all construction sites and operations including building renovation, overpasses, monuments, bridges and tunnels surveys, as well as for detailed analysis of the original engineering project and comparison with the as-built structure.

C-thrue offers more flexibility with no limitations for your analysis requirements, thanks to a compact and light telescopic pole and an external controller that can be easily transported on site in challenging locations or conditions (e.g. under a deck, under ceilings, over floors, on walls, etc…).

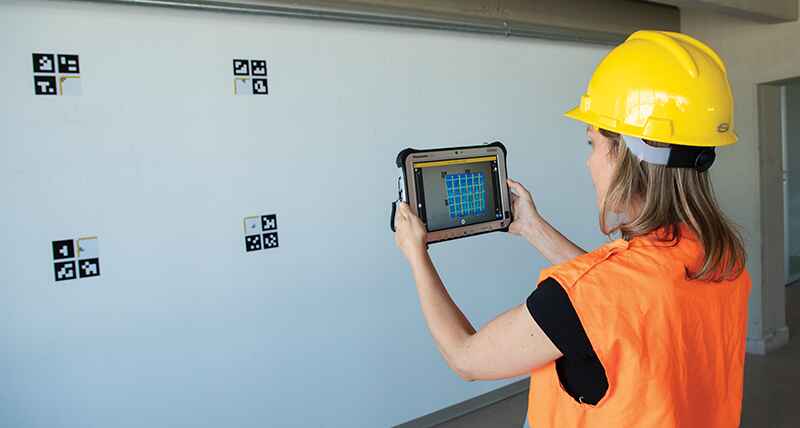

The C-thrue external controller allows easier and faster data interpretation thanks to real-time data processing and representation of results in Augmented Reality for more efficient decision-making.

Construction and service companies together with civil and structural engineers can improve their safety by using C-thrue XS to quickly locate rebars, voids, post-tension cables, cavities, conduits, and any other objects buried in the structure before cutting or drilling into the concrete.

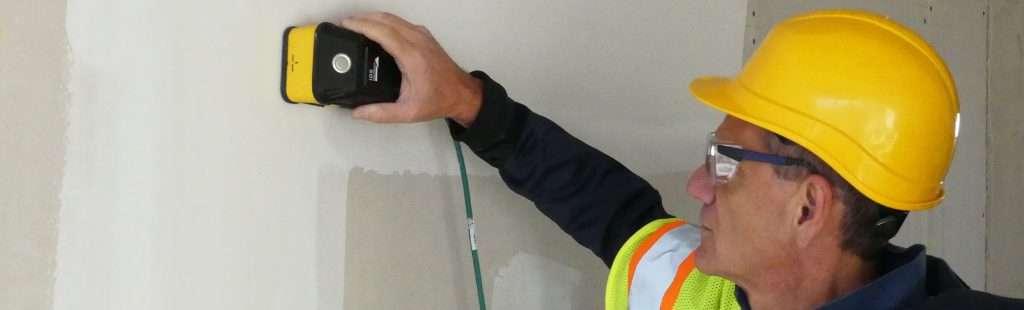

C-thrue XS, adding to the C-thrue product family, is the new compact hand-sized GPR with dual polarization to never miss a detail in one scan: the smallest and lightest antenna on the market capable of detecting both shallow and deep targets.

DUAL ANTENNA POLARIZATION: DETECT SHALLOW AND DEEPER TARGETS IN A SINGLE MOVE.

C-thrue XS allows the most accurate scanning performance and real-time analysis of concrete structures with a hand-sized device able to perform in-depth inspections. C-thrue XS boasts a dual polarization radar technology (displaying both HH a VV channels), making this device capable of locating and identifying shallow and deep targets in a single swath with the maximum clarity of data leading to an optimal decision making.

MULTIPLE CONFIGURATIONS: STAND- ALONE OR INTEGRATED USE

Offering the maximum flexibility, C-thrue XS is available in two configurations:

– STANDALONE: Easily scan across any concrete inspection scenario with C-thrue XS and promptly visualize the collected data results on your tablet

– INTEGRATED USE WITH C-THRUE: C-thrue XS’ combined use with C-thrue allows to cover any jobsite challenge and quickly visualize data on C-thrue’s multi-touch display

A compact and light telescopic pole and an external controller allow C-thrue to maximize its reach in concrete scanning operations across challenging locations: under a deck, along vertical walls or ceilings. C-thrue can also be used in combination with C-thrue XS – the smallest and lightest concrete scanning antenna on the market – to inspect constricted and difficult to reach spaces: pillars, corners and areas around obstructions.

• Clearer and faster surveys in one scan
  Real-time detection of both first and second levels of rebars thanks to the system’s dual polarization (HH+VV)
• Maximized detection for unmatched productivity
  Enjoy an accurate full target detection to increase confidence in data interpre­tation with reliable real-time results and save time for data collection.
• Safely drill in the surveyed structure
  Accurately locate rebars, ducts, cable, metallic and non-metallic objects for your safety before cutting or drilling into the concrete
• Improved ergonomics boosting usability
  Designed for a maximum user experience, the compact size of C-thrue XS offers superior usability and reduced fatigue in long-term use with easy reach to inaccessible areas
• Superior versatility across different environments
  Besides offering a top level performance across different concrete inspection scenarios, C-thrue XS maximizes its reach in challenging locations with a compact and light telescopic pole and an external controller.

The solution is suited for all construction sites and operations including building renovation, overpasses, monuments, bridges and tunnels surveys, as well as for detailed analysis of the original engineering project and comparison with the as-built structure.
