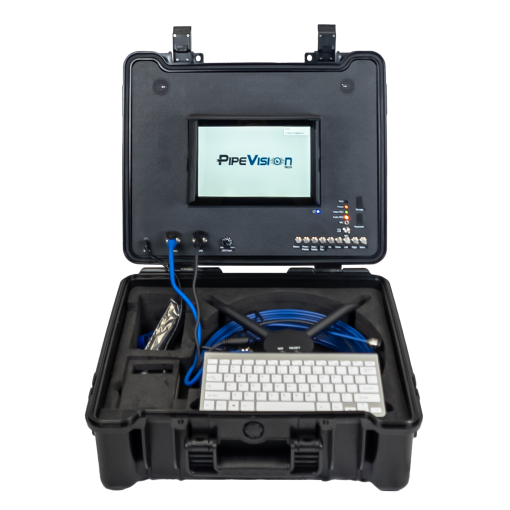

1″ (23mm) AHD Camera head, 98′ Cable, M/F Counter, 10″ Control Unit

PVT-VN2330 is a portable pipe inspection camera for small pipe size between 25 to 100mm (1″ to 4″). Easy to use and can be operated by one person. 12pcs high intensity LED give more than enough brightness for 23mm camera head to inspect conveniently. 10 inch LCD monitor equipped with sun shield and remote control. Capable of recording (up to 64GB SD) for later review.

Main Features:

1. Dia.23mm self-leveling camera head

2. 1.3 mega pixel waterproof camera

3. 10inch HD LCD monitor

4. HD DVR 720P AVI Video

6. Dia. 5.2mm fiberglass cable reel

7. Digital Meter counter function

Camera Head:

Camera head size 23 x 53mm

Sensor 1/3 CMOS,1.3MP (1024×768) pixel camera

Camera head casing material stainless steel

IP68 waterproof

12 pcs high intensity white LED

DVR Control Box:

10″ industrial color monitor
Display model 16:9
Resolution 1280*720

Menu language 5 languages optional

Control Panel

The DVR control part will be built in the monitor board

Video input and encoder input

USB flash drive (Max 1 TB) jack, wireless keyboard jack

LED brightness adjusting knob

HD DVR video/photo selection available

On/off microphone control button

Up/down/left/right button

Cable Reel:

Fiberglass push rod cable with meter counter

Digital meter counter function error is less than 1%

Cable diameter 5.2mm

Cable length f30m  up to 50m optional

Reel  size 320X100mm

No need to hold the cable reel by hand, it can be inside the box or on the ground

 Battery & Charger:

Power AC110V-240V, DC or 8800mA li-ion battery

Charging time 5 hours, working time 6 hours
