Advanced Pole Camera for Pipe Inspection
EX1H4 Pole Inspection Camera System is designed for quick detection and diagnosis of internal conditions, functional issues, and structural defects in industrial containers, tanks, and pipeline systems. The lightweight carbon-fiber pole extends up to 15 m (~50 ft) for safe, non-entry inspections, while the HD camera captures clear visuals at distances up to 50 m (~165 ft). Ideal for sewer and manhole inspection, industrial maintenance, and engineering diagnostics requiring high-definition pole camera technology.
Description

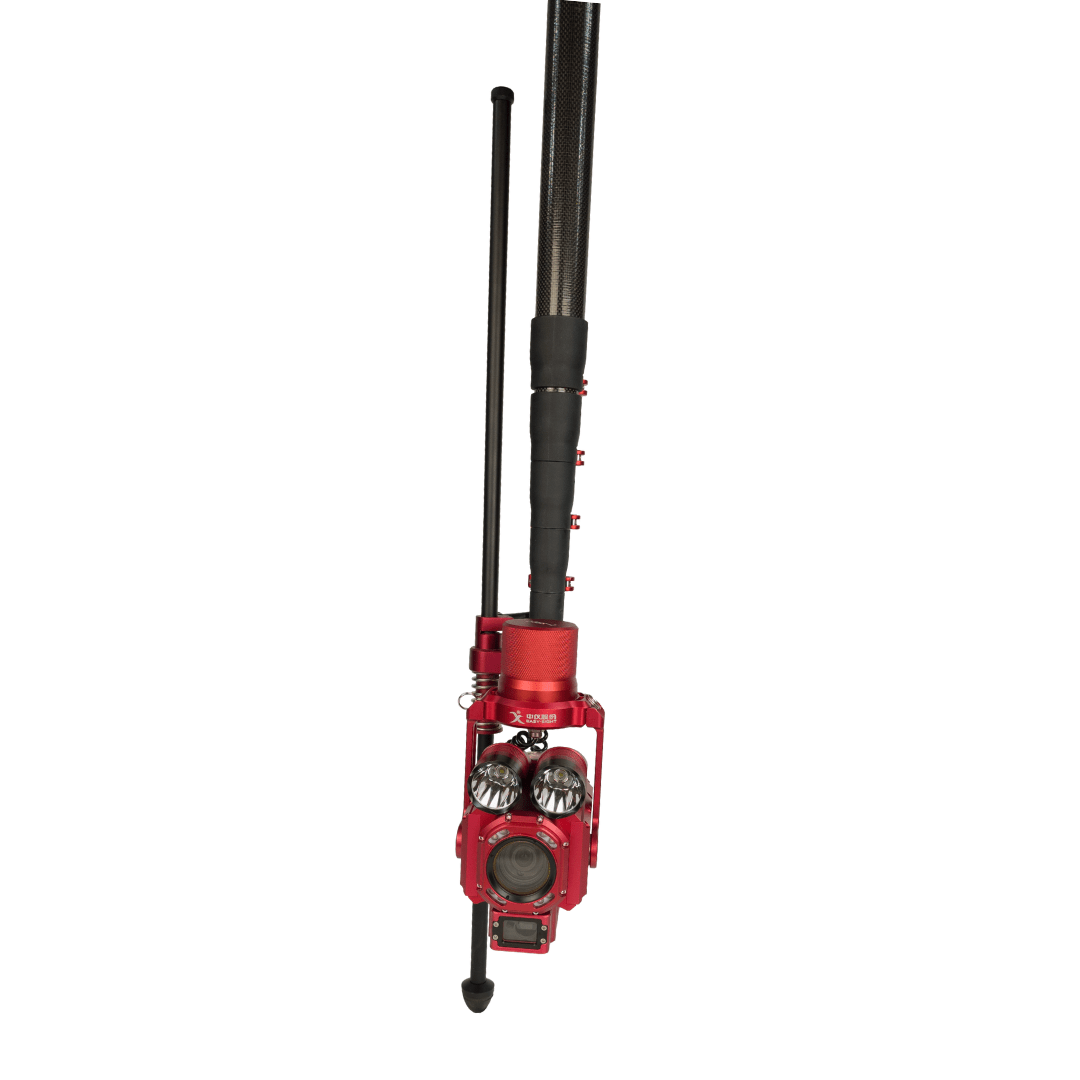

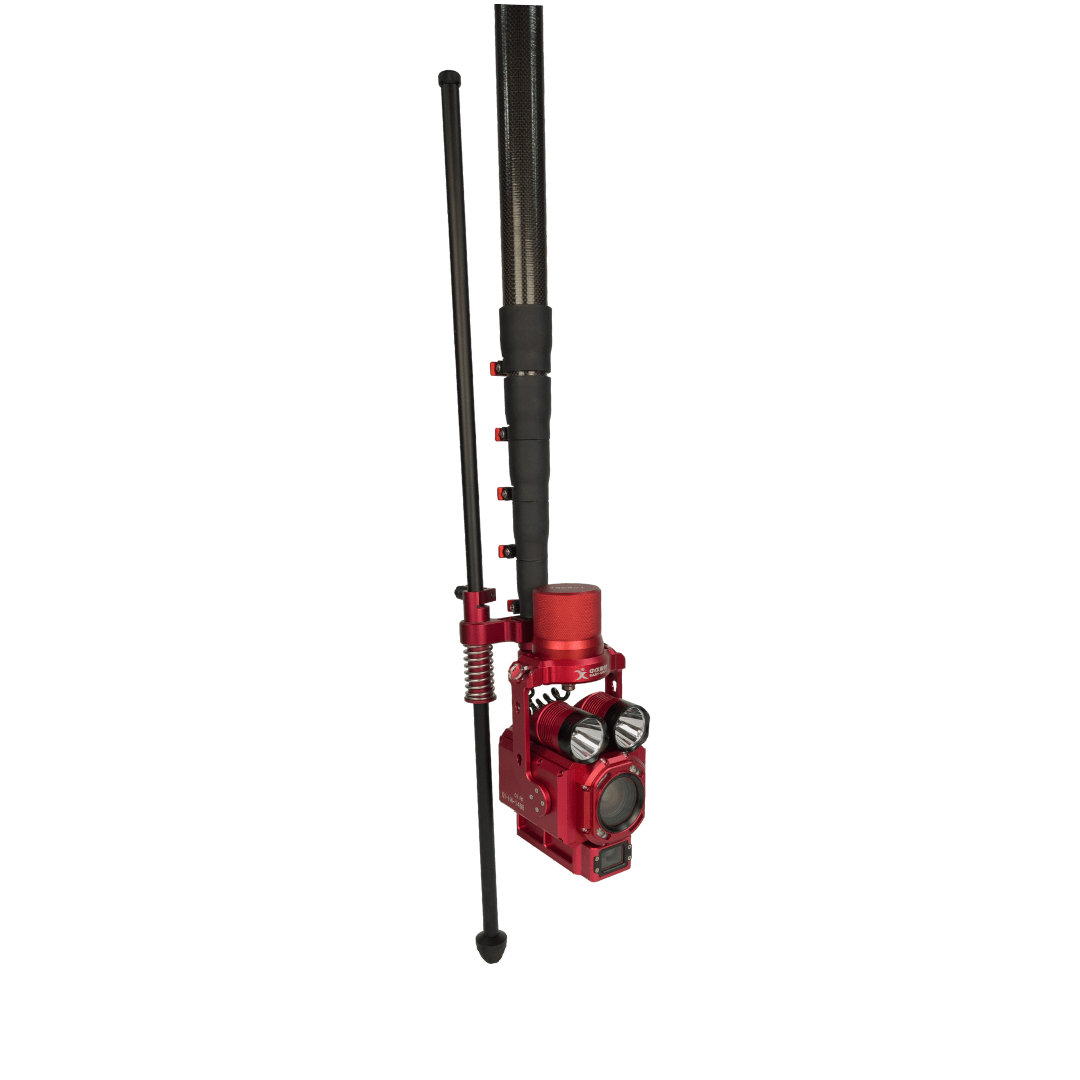

The three telescopic poles have a total length of up to
25ft (Optional up to 50ft). The Full HD camera features
motorized tilt, 30X optical and 12X digital zoom to
enhance inspection of underground pipes. The camera
is equipped with distance laser.
Compatible for inspection of
• Pipes: 100mm up to 2000mm
• Manholes: 400mm up to 2000mm

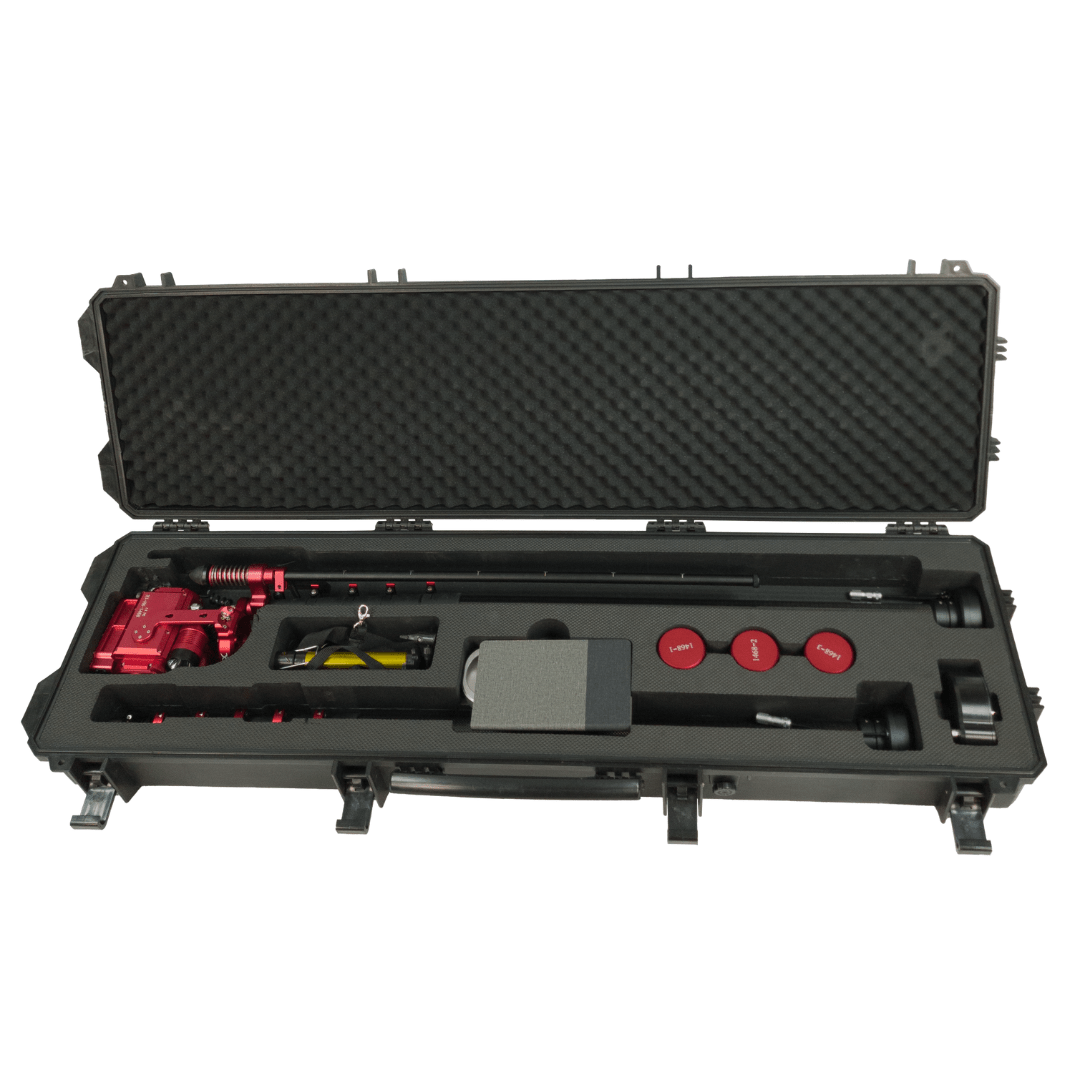

In the Box-
• Pole Camera
• 3 x Telescopic Poles (1 x 15ft, 2 x 5ft)
• SAMSUNG FE 10.9” Control Tablet
• 3 Battery Pack & Charging Dock
• Top Manhole Holder
• System Carry Case
• 1 Year Warranty
Technical Details
| Camera Resolution | 2.1 million Pixel HD Camera |
|---|---|
| Zoom | 30X Optical, 12X Digital |
| Distance Laser | Up to 100m (+/-0.001m) |
| Camera Angle | 58.4° Wide, 2.3° Long |
| Focus | Manual / Auto |
| Camera Lens Defogging | Yes / Heated Lens |
| Main Light | 4 x 10W High Intensity LEDs |
| Auxiliary Light | 6 x 3W High Intensity LEDs |
| Control Unit | Samsung FE 10.9” |
| Memory | 128Gb |
| Connection Type | Wi-Fi Connection to Tablet |
| Pole Material | Carbon Fiber |
| Pole Length | Up to 25ft Telescopic |
| Camera Tilt | 60° Up, 30° Down |
| Top Manhole Holder | Included |
| Battery Power Supply | 3 Battery Pack (Up to 8 Hours) |
| Camera to Wi-Fi Module | Wireless |
| Working Temperature | -20°C to 50°C |
| Environment Protection | IP68 |
| Carrying Case | ABS Protective Case |
