All-Terrain CCTV Crawler Robot

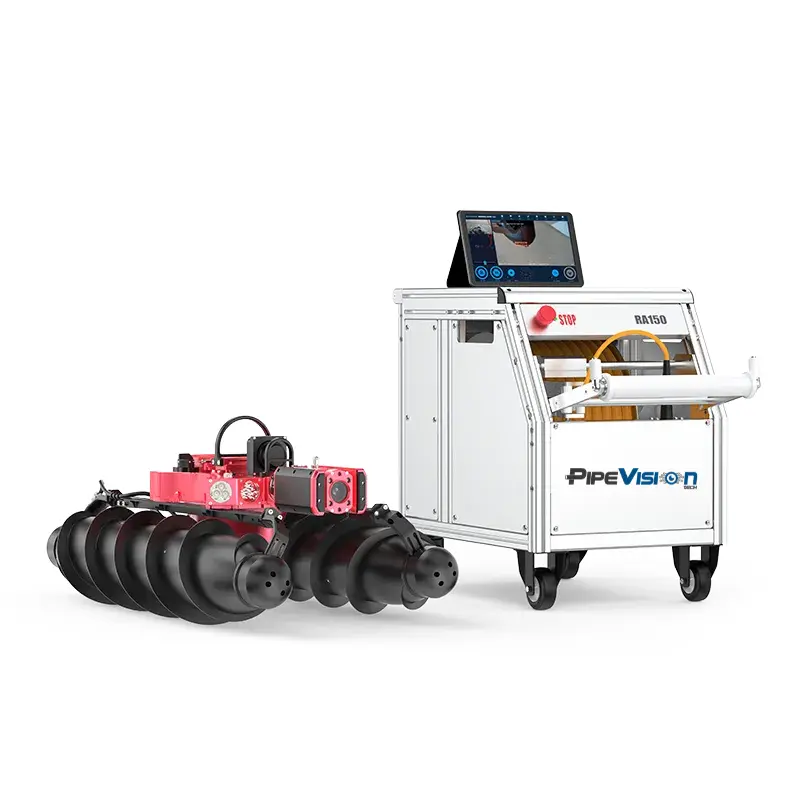

The AT150 all-terrain pipeline robot is designed for inspecting pipelines with a minimum diameter of 600mm (23.5in), even in challenging environments like high water levels, thick silt, and muddy water. Equipped with a 360° high-definition camera and advanced sensors, it provides comprehensive views and analysis of pipeline conditions. With a speed of up to 0.5 m/s and a 2,050-meter inspection range, the AT150 is ideal for municipal drainage, rivers, and similar structures.

Product Overview
Main Unit	Controls crawler movement, lens rotation, cable reel, and light source Displays front and rear video simultaneously with adjustable resolution Real-time status display (time, date, distance, attitude) Built-in alarm functions for roll angle and air pressure limits

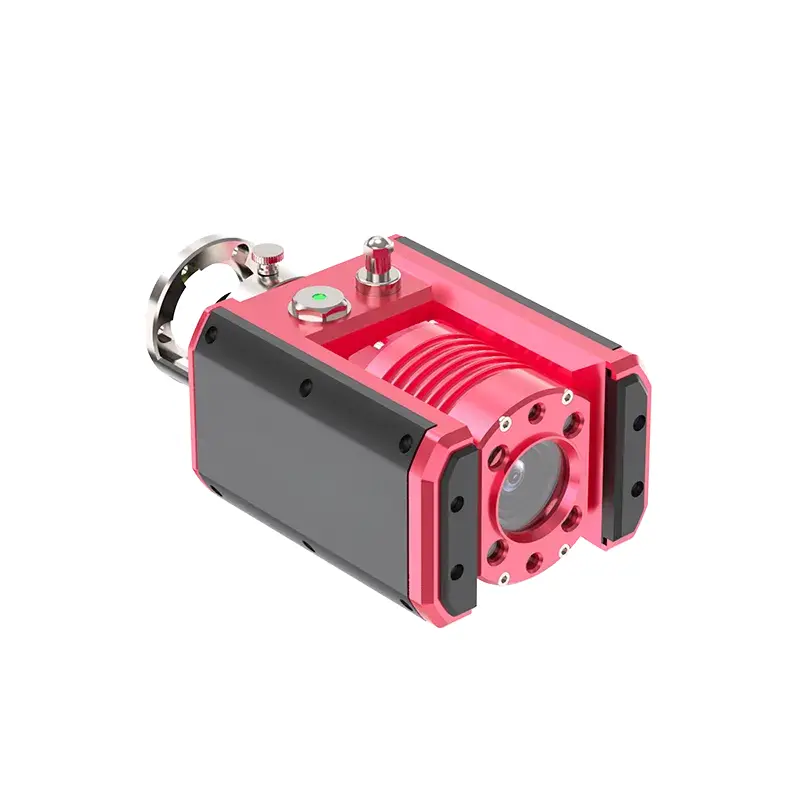

Pan-Tilt-Zoom (PTZ) Lens	360° continuous rotation and 2 x 90° tilt Auto/manual focus with 10x optical zoom 2MP CMOS color sensor, 6.7°~68° viewing angle IP68 rating, submersible up to 10m Built-in pressure sensor Operating temperature: -10°C to +50°C

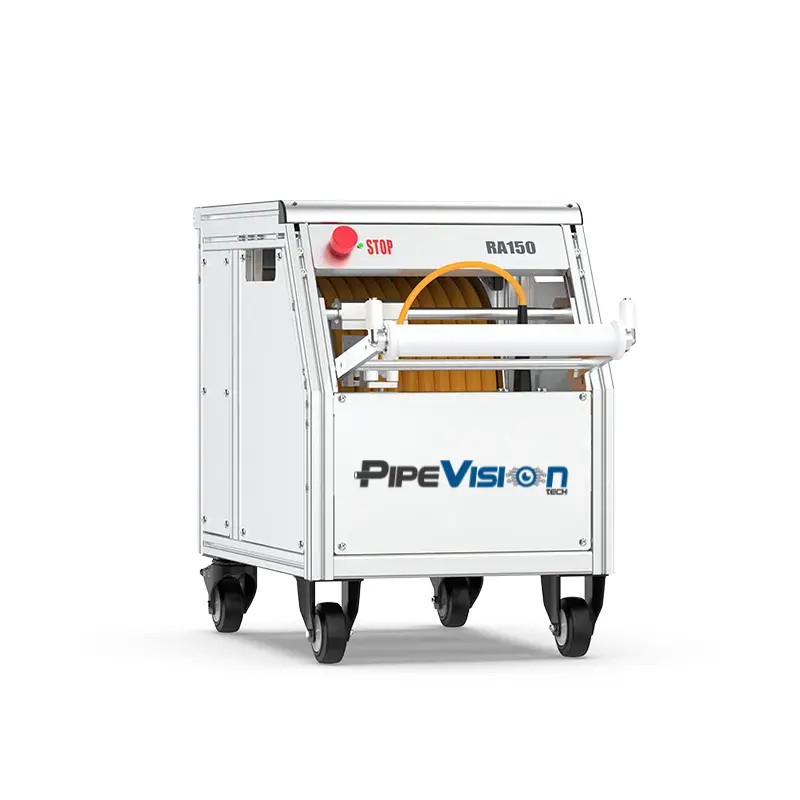

Electric Cable Reel	150m floating cable, optional 300m Automatic winding with precise encoder Wireless and Ethernet interfaces IP63 rated for dust and splash resistance

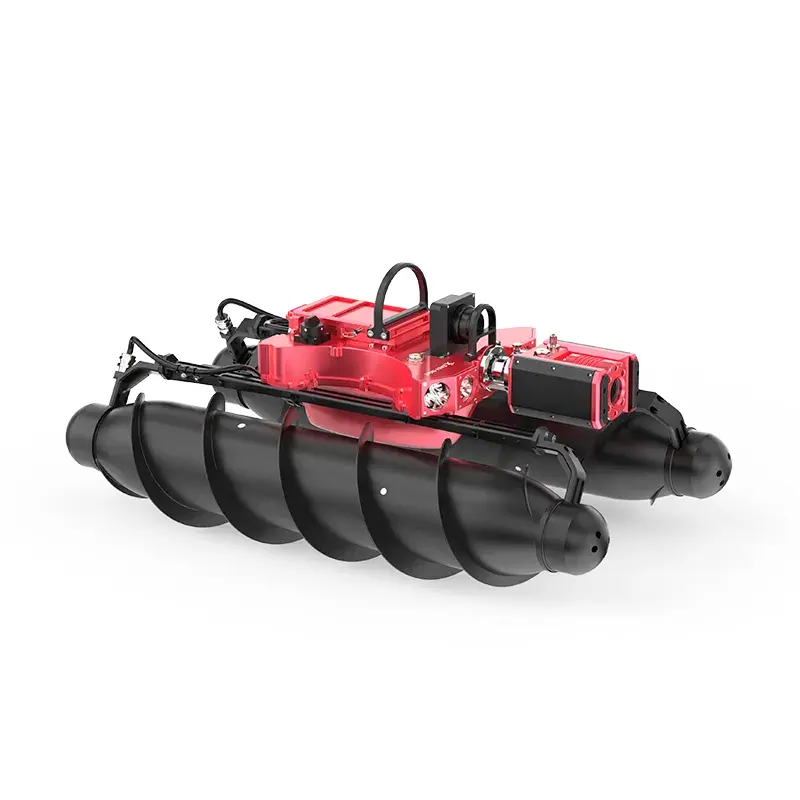

Spiral Propulsion Crawler	For pipes above 600mm diameter Battery-powered with 1-2 hours battery life 2MP color HD video, 10x zoom, 360° horizontal, 180° vertical Forward: 4x 12W LEDs, Rearward: 1x 10W LED Positioning sensors, sonar detection, and 2D laser installed Weight: 16kg, Still water speed: 0.5m/s

Ask for Price

Dimensions	22 × 15.5 × 18.7 in
