Water Well Camera: 1.5″ Dual Camera, from 200m to 500m cable length with Automatic Coiling & Uncoiling

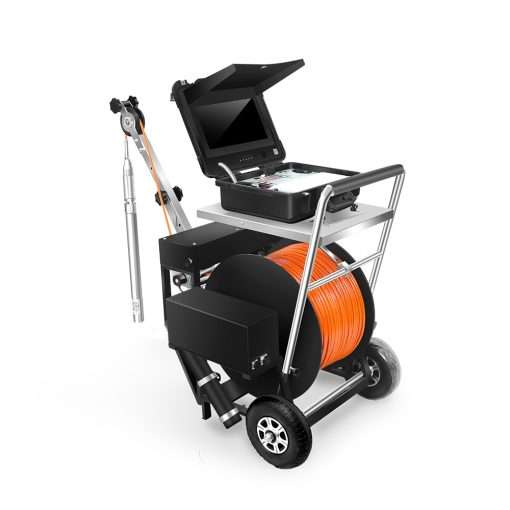

VW45300M-13 Water Well Inspection Camera System is a professional water well camera designed for precise borehole and downhole video inspection. It includes a 45mm dual-view camera head, a DVR control unit for real-time recording and playback, and an electrical cable winch for easy operation. Powered by AC 110 V–240 V for the motorized winch, the control box also comes with a built-in 7000 mAh battery for portable field use. Automatic coiling and uncoiling functions make this borehole camera system efficient and ideal for deep-well maintenance and inspection.
| Main Features | Specifications |
|---|---|
| 1. Dia. 45 mm dual (side / down) camera 2. Waterproof up to 50 bars 3. 360° rotation camera 4. 13 inch LCD monitor + DVR control box 5. Cable length 200 m – 500 m 6. Electrical winch cable reel 7. Depth counter function 8. Automatic coiling and uncoiling function |
|

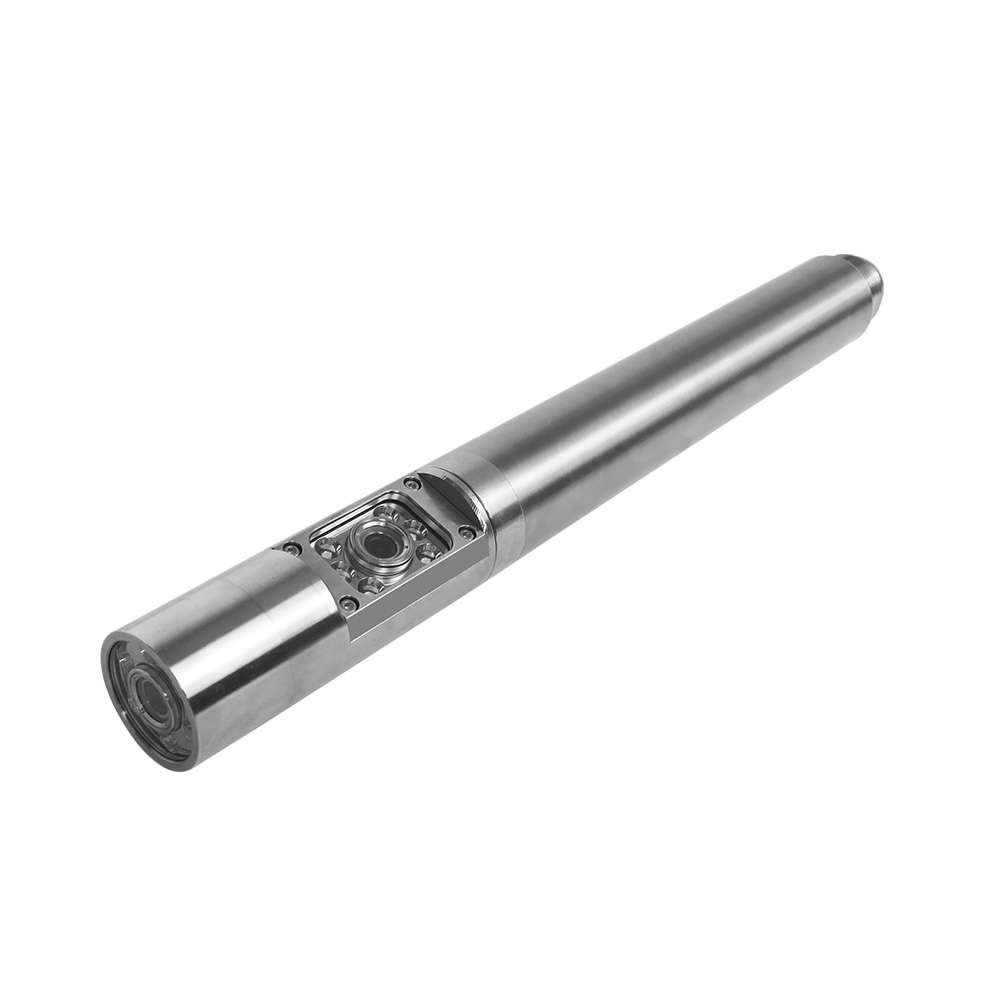

| Main Part 1 – 45 mm Dual View Camera Head | |
| Camera Body | Φ45 mm × L570 mm, Stainless steel casing |
| Waterproof Rating | IP68 – Operating depth 50 bars / 725 PSI |
| Viewing Mode | Dual camera (Down & Side) |
| Rotation | Pan 360° endless rotation |
| View Angle | 120° |
| Sensor Resolution | PAL 720H×576V / NTSC 720H×480V |
| Horizontal Resolution | 700 TVL |
| LED Lights | 6 LEDs (down view) + 6 LEDs (side view) |
| Camera Weight | 6 kg |

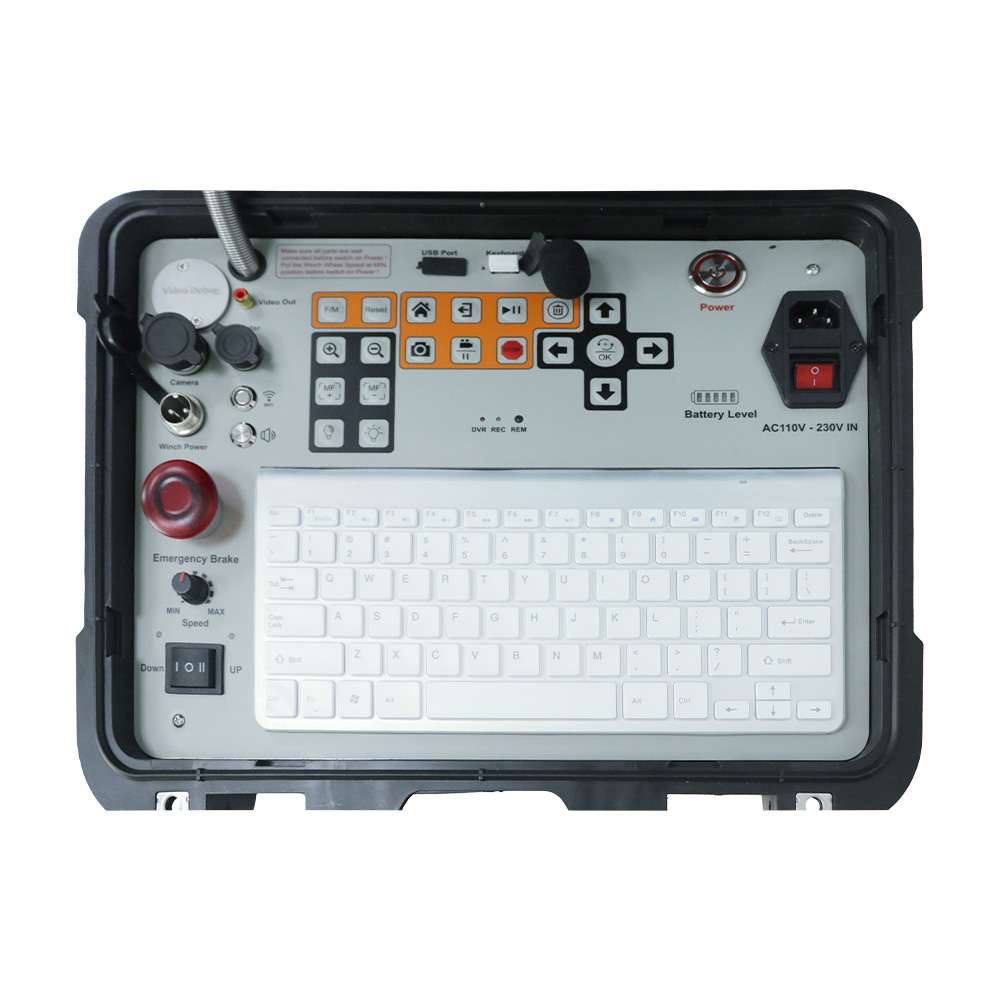

| Main Part 2 – DVR Control Unit | |
| Monitor | 13″ industrial color monitor (4:3 ratio) |
| Resolution | 1024 × 768 pixels |
| Menu Languages | 9 languages (optional) |
| Video Input Options | Borehole Camera or Pan & Tilt Camera |
| Winch Control | Speed, cable up / down, brake adjustment knob |
| Camera Rotation Control | Clockwise / counter‑clockwise buttons |
| LED Brightness | Adjustable with control buttons |
| Recording | HD DVR audio / video record and playback |
| Storage Medium | Built‑in 128 GB SSD or USB |
| On‑Screen Display | Depth encoder, temperature & direction |
| Wireless Transmission | Built‑in Wi‑Fi transmitter – range 30 m |
| Compatibility | Android, Apple iOS, or MID terminal display |

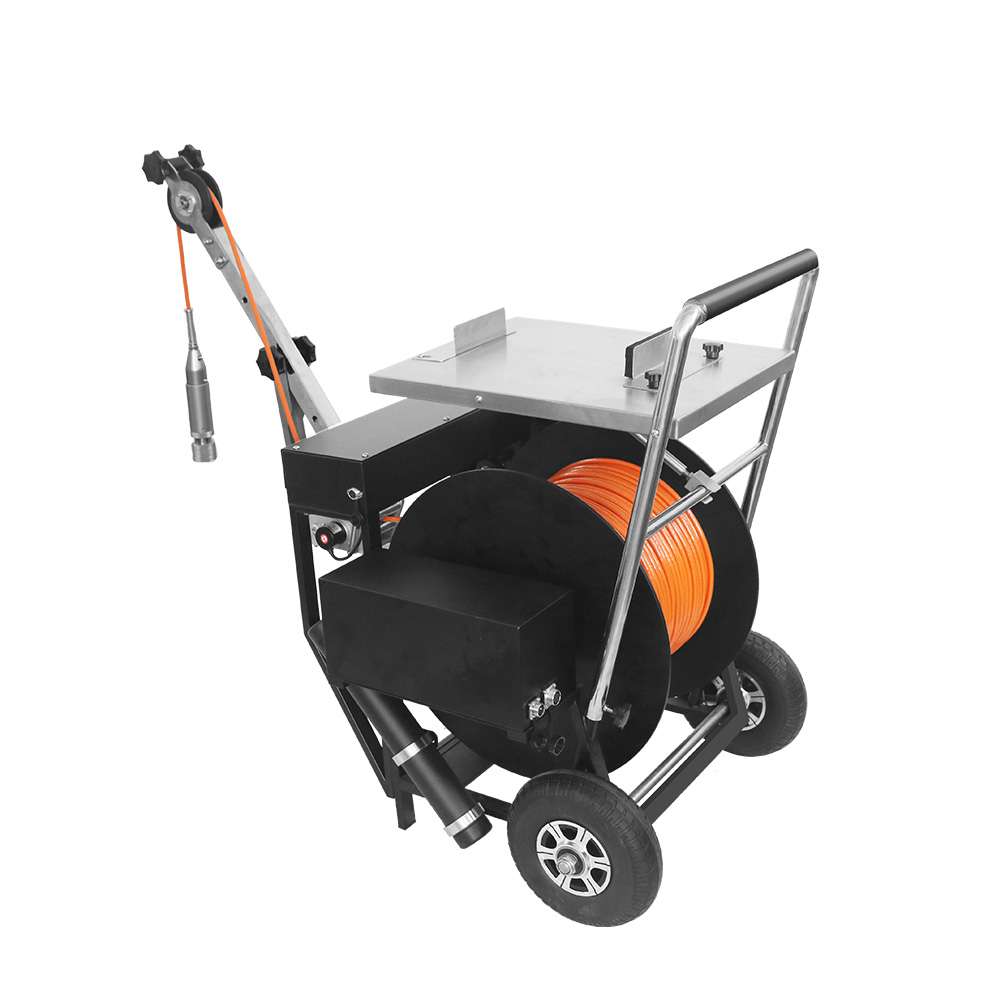

| Main Part 3 – Electrical Cable Winch | |
| Winding Speed | 0 – 20 m / min (adjustable) |
| Cable Type / Length | Φ10 mm twisted pair (100 – 500 m option) |
| Power Supply | AC 110–230 V or DC 12–24 V |
| Depth Counter | On‑screen encoder display |
| Operation | Electric rolling with automatic coiling / uncoiling function |
| Weight | 88 lbs |
|---|---|
| Dimensions | 39 × 20 × 24 in |
