PipeVision provides advanced water well and borehole camera systems built for reliable inspections of underground wells, manholes, down‑holes, and boreholes.
Our systems combine:
– Dual‑view camera heads (down‑view + side‑view with 360° rotation)
– Extended cable lengths up to 200m (650ft)
– Industrial DVR monitors with recording features
– Rugged winch reels with on‑screen depth counters
Whether you need a compact, field‑ready inspection unit or a larger display for team analysis, we have the right solution for your projects.

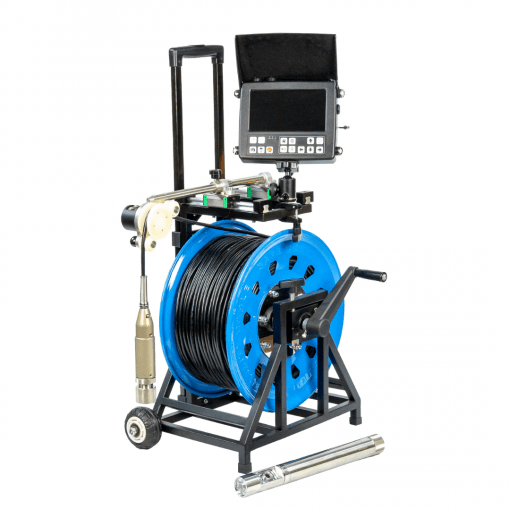

PVT‑VW45200‑W – Compact Borehole Camera
The VW45200‑W is a compact, reliable camera system designed for standard water well and borehole inspections.
Highlights:
- Dual Vision Camera (front + 360° rotation side view)
- 8″ waterproof DVR screen
- Bluetooth keyboard – add notes while recording
- Adjustable LED illumination (down + side)
- 200m (650ft) soft cable with drum + crane mechanism
- On‑screen cable counter in feet/meters
A balanced, portable option for contractors needing an efficient, budget‑friendly inspection system.
PVT‑VQ45200‑13 – Borehole Camera
The PVT-VM45200-13 offers all the reliability of the VW45200‑W, but with a bigger 13″ industrial monitor and enhanced DVR control — making it ideal for long inspections and group viewing.
Highlights:
- Dual Vision Camera (front + endless rotation side view)
- 13″ LCD DVR screen (1024×768 resolution)
- Built‑in WiFi to stream video to Android/iOS devices (30m range)
- Built‑in SSD (128GB) + USB recording
- On‑screen data: Depth, temperature, orientation
- Adjustable winch speed (0–20m/min), 200m cable standard (100–500m optional)
The professional’s choice when you need greater clarity and extended inspection capability.
PVT-VW45300M-13 – Borehole Camera
The PVT-VW45300M-13 delivers advanced performance for deep‑well and borehole inspections up to 500 m. Built with a 45 mm dual‑view camera head and a 13″ industrial LCD monitor, it combines high‑definition imagery, durability, and automation in one compact system.
Highlights:
- Dual View 45 mm camera head.
- 13″ LCD monitor + DVR control unit with 128 GB SSD storage.
- Built-in Wi-Fi – stream live video to Android and iOS devices.
- On-screen data display – depth & orientation visible during operation.
- Automatic electric winch with adjustable speed (0 – 20 m/min).
- 200 m standard cable length.
- Integrated LED lighting – 6 down-view + 6 side-view adjustable LEDs
The professional’s choice for deep-well and borehole projects demanding clarity, reliability, and efficiency in even the toughest environments.
Side‑by‑Side Comparison
| Feature | PVT‑VW45200‑W | PVT-VM45200-13 | PVT-VW45300M-13 |
|---|---|---|---|
| Camera Type | Dual Vision (Down + Side) | Dual Vision (Down + Side) | Dual Vision (Down + Side) |
| Camera Rotation | 360° Endless | 360° Endless | 360° Endless |
| Monitor | 8″ LCD (Waterproof) | 13″ LCD (Industrial) | 13″ LCD (Industrial) |
| Note‑Taking | Bluetooth Keyboard | Bluetooth Keyboard | Bluetooth Keyboard |
| Recording | DVR, USB | DVR, USB, Built‑in 128 GB SSD | HD DVR, USB, Built‑in 128 GB SSD |
| On‑Screen Data | Depth Counter | Depth + Temperature + Direction | Depth + Temperature + Direction |
| Cable Length | 200m (650 ft) | 200m (650 ft) | 300m (985ft) |
| Winch | Manual | Electrical Adjustable Speed | Electrical Automatic Coiling / Uncoiling |
| Waterproof Rating | 30 Bars | 30 Bars | 50 Bars |
| Wi‑Fi Streaming | – | Built‑in Wi‑Fi (30 m range) | Built‑in Wi‑Fi (30 m range) |
| Best For | Compact Daily Inspections | Long Inspections & Group Viewing | Deep Well Applications & High‑Pressure Inspections |
Ready to upgrade your inspection setup? Request a quotation today and our team will help you choose the right model.
