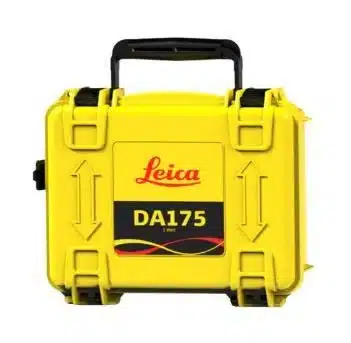

DA175 Leica Signal Transmitter
$1,520.00
DA175 is used to apply a trace signal to underground utilities. Features three trace signals, 512Hz, 640Hz, 8kHz and 33kHz with variable power output level up to 1 Watt (optional 3 Watt).
Compatible with the Leica Detect DD120, DD130, and DD175.
Leica DA175 1 Watt Signal Transmitter (Available in 3 Watt)
- Leica DA175 1 Watt Signal Transmitter
- One Year Warranty
- Alkaline Batteries
| Mode | Output |
|---|---|
| Induction | Up to 1 Watt max. |
| Connection mode | Model dependent, up to 1 Watt or 3 Watt, when connected to a buried utility with an impedance of 300 Ohms |
| Operating transmission frequencies | 32.768 (33) kHz 8.192 (8) kHz 512 Hz 640 Hz |
| Display panel | LED Indicators:
Connection mode |
| Keypad | 4 membrane push buttons |
| Audio | 85 dBA @ 30 cm Induction mode: Pulsed output with a differing rate for each frequency Connection mode: Low – No output: pulsed output, differing rate for each frequency Good Connection output: constant tone, pitch dependent on power output |
| Battery type | Alkaline |
| Typical operating time 3 Watt, 1 Watt | 15 hours at power level 2 connection mode |
| Dimensions | 250 x 206 x 113 mm/9.84 x 8.11 x 4.45 inches |
| Weight (incl. standard accessories and batteries) | 2.38 kg |
| Temperature | Operating -20°C to +50°C, -4°F to +122°F Storage -40°C to +70°C, -40°F to +158°F |
| Protection against water, dust and sand | Conforms to IP67 lid open or closed |
| Humidity | 95% RH non condensing The effects of condensation are to be effectively counteracted by periodically drying out the product. |
| Approvals | CE, FCC |
| Weight | 9 lbs |
|---|---|
| Dimensions | 8.5 × 10 × 5 in |
