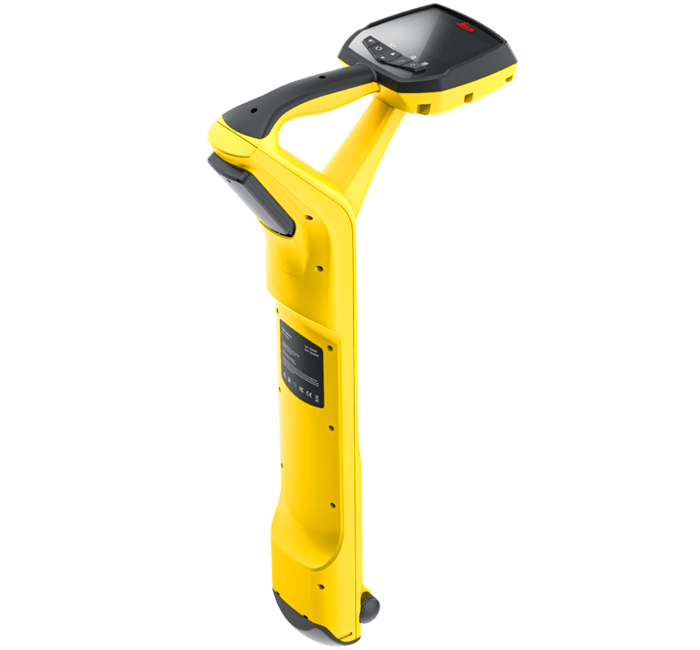

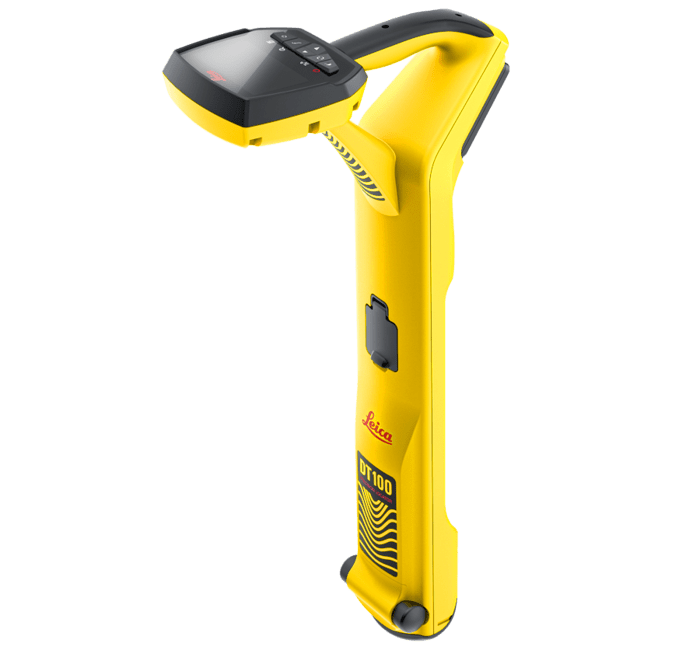

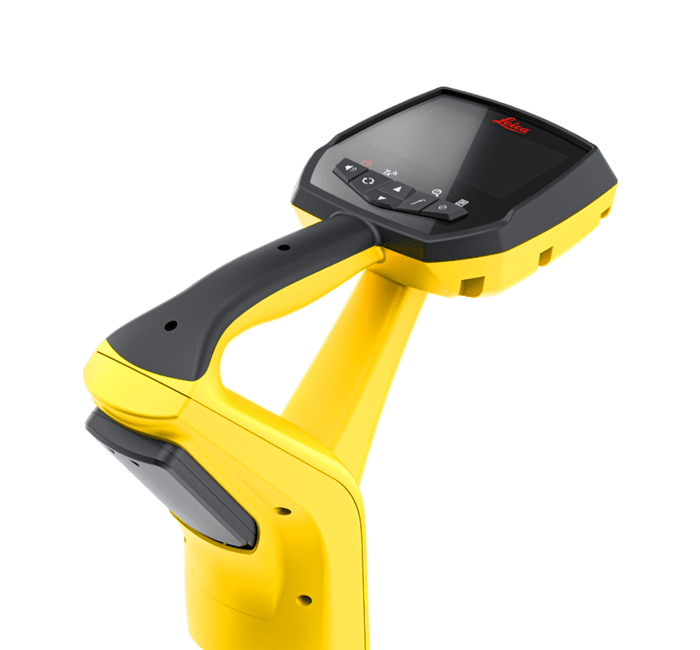

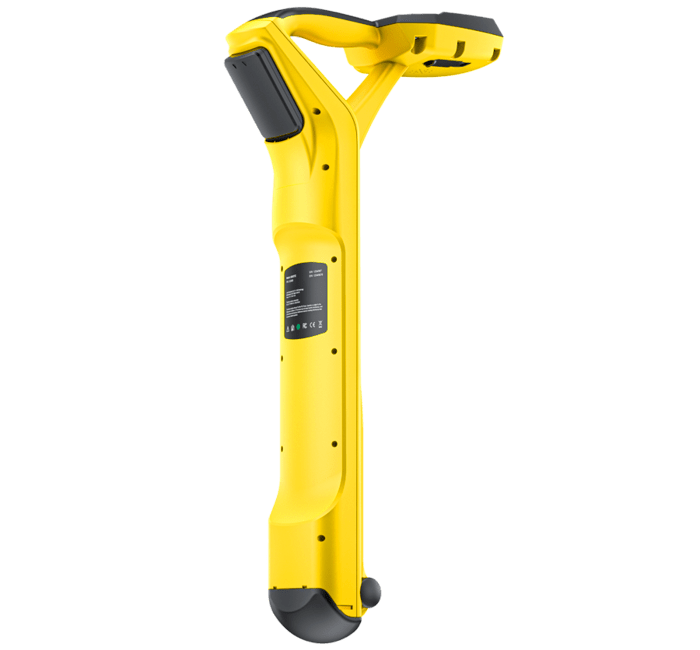

Leica DT100 Precision Locator
Price range: $6,045.00 through $12,655.00
The Leica DT100 is our most advanced precision utility tracing system. Intelligent signal processing integrated with unique flexible operating modes saves time and provides increased confidence in your results. Selectable antennae and customized frequencies optimize your instrument for site specific applications.
In the Box-
- Locator Package
- Leica DT100 Precision Locator
- 2x Li-Ion battery for DT100
- Alkaline adaptor for DT100
- Li-Ion battery charger for DT100
- Power Cord Adapters Type A/C/G/I

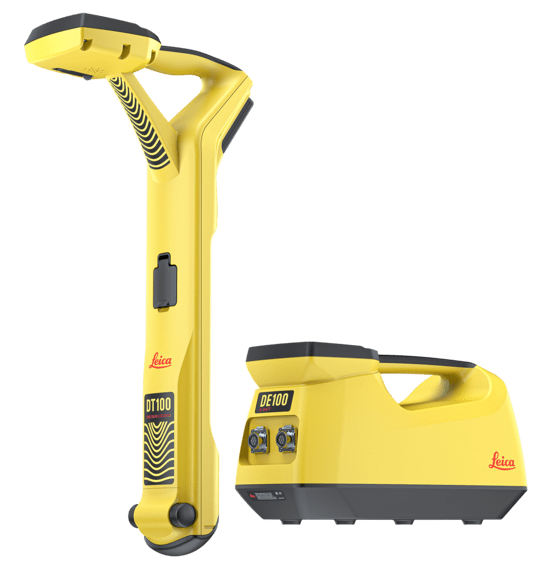

- Lite Package
- Leica DT100 Precision Locator
- Leica DE100 10 Watt Transmitter
- Earth Stakes 48cm
- Crocodile clamps
- Transmitter Bag
- System Bag
- DE100 Alkaline adaptor for TX
- DT100 Alkaline adaptor for Locator
- Surveyor Package
- Leica DT100 Precision Locator
- 2x Li-Ion battery for DT100
- Alkaline adaptor for DT100
- Li-Ion battery charger for DT100
- Leica DE100 10 Watt Transmitter
- Li-Ion battery for DE100
- Alkaline adaptor for DE100
- Li-Ion battery charger for DE100
- Crocodile clamps
- Signal Clamps
- 2x Earth Stake
- 8m Ground Spool
- USB-c Cable
- System Bag
- Transmitter Bag
- 2x Power Cord Adapters Type A/C/G/I
Technical Specifications |
|
| Frequency Range |
50Hz – 200kHz |
| Sensitivity |
33kHz (1µA at 1m) |
| Dynamic Range |
117dB |
| Max Automatic Depth |
6m / 20ft |
| Max Pushbutton Depth |
11m / 36ft |
| Locate Accuracy | ±5% depth |
| Dynamic Overload Protection | 60dB (automatic) |
| Depth Accuracy | – In line ±5% to 3m / – In line ±5% to 10ft – Sonde ±5% to 3m / – Sonde ±5% to 10ft – Passive ±5% to 3m / – Passive ±5% to 10ft |
| Factory Standard Frequencies (Hz) | – Power: 50, 60, 150, 180, 450, 540 – Grouped Power: 50, 60 (+odd harmonics up to ~1.1kHz) – Radio: bandwidth approx 13kHz – 28kHz – Cathodic: 120Hz for 60Hz 100Hz for 50Hz – Active: 256, 263, 440, 512, 560, 577, 640, 815, 870, 940, 1.02k, 1.17k, 3.14k, 4.1k, 8.01k, 8.19k, 9.82k, 12.1k, 16.3k, 22.5k, 29.4k, 32.8k, 44.5k, 66.1k, 88.8k, 99k, 132k, 200k – Sonde: 512, 640, 8.19k, 32.8k |
| Locate Direction | Any frequency from 256Hz to 10kHz |
| Fault-finding DE based | 263Hz |
| Active Locate Mode | – Twin – Single Peak – Null – Twin Sweep (Omnidirectional) – Single Sweep (Omnidirectional) |
| Gain Control | Manual gain using “↑” or “↓” buttons |
| Alerts | – Strike Alert – Swing Warning – Overead Cable |
| Frequency Analyzer | Determines the best frequency option based on environmental interference |
| Autoshutdown | Selectable via settings menu |
| Connectivity | Bluetooth low energy (BLE) |
| Available accessory | Ring Clamp |
| Languages |
22 languages user selectable: |
| Backlight | Selectable via settings menu |
| Units | Metric and Imperial – selectable via settings menu |
| Environmental Protection | IP65 |
| Operating Temperature | -20 °C to +50 °C / -4°F to +122°F |
| Storage temperature | -32°C to +70°C / -25°F to +158°F |
| Battery | Li-Ion Battery Pack 3200mAh – 11.1V, 35.5Wh 6 X AA Alkaline Battery |
| Battery Life | – With Lithium: 15 hours continuous – 30 intermittent – With Alkaline: 5 hours continuous – 10 intermittent |
| Dimensions (HxWxD) | 68×14.7×32.6 cm – 26.7×5.8×12.7 in |
| Weight with batteries | 2.1kg – 4.8lbs |
| Weight | 4.8 lbs |
|---|---|
| Dimensions | 12.7 × 5.8 × 26.7 in |
| Packages | Leica DT100 Precision Locator Package, Leica DT100 DE100 Lite Package, Leica DT100 DE100 Surveyor Package |
