PVT-VQ5060-11PT13H: Pan & Tilt Mainline Sewer Camera, Up to 11mm and 120m Cable, 13″ HD LCD Screen, Built-in 512Hz Sonde

Name: PVT-VQ5060-11PT13H: Pan &amp; Tilt Mainline Sewer Camera, Up to 11mm and 120m Cable, 13" HD LCD Screen, Built-in 512Hz Sonde
SKU: PVT-VQ5060-11PT13H
Availability: InStock

Price range: $11,899.00 through $15,699.00

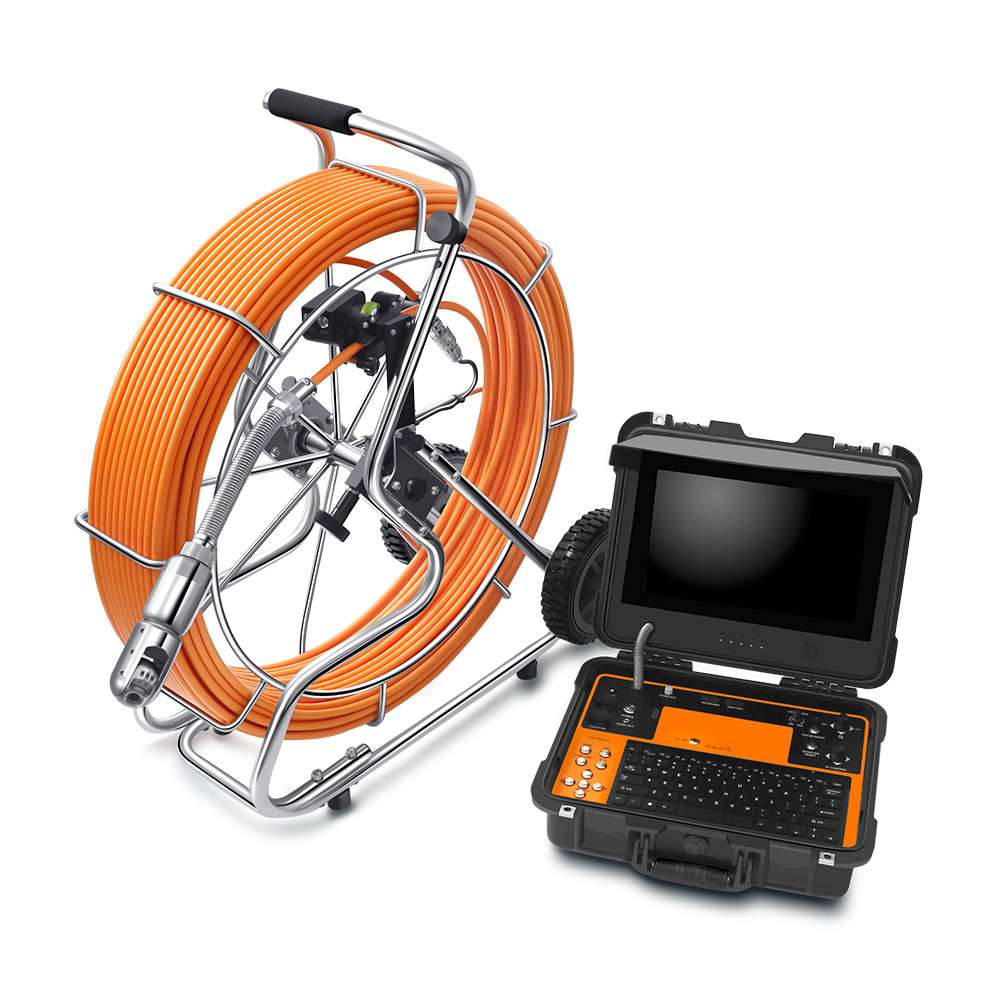

The PVT-VQ5060-11PT13H Mainline Push Camera is a versatile solution for inspecting pipes 60mm to 400mm (2 1/2″ to 18″). Featuring a 50mm Pan & Tilt camera with 6 high-intensity LEDs and an 11mm fiberglass coaxial cable with 60m length (optional 120m), it delivers clear visuals and easy navigation for reliable pipeline inspections.

In the box:

2″ Pan & Tilt Camera Head with 512Hz Sonde
11mm x 60m Push Cable (Optional 120m)
13″ Advanced DVR Unit with Protective Case
Accessories: 4″ Skid, Bluetooth Keyboard, 16GB USB, Carry Bag
1 Year Warranty

Cable Length

Clear

SKU: PVT-VQ5060-11PT13H Categories: All Products, PushCam Systems, Pushrod System, Systems Tags: 13" Advanced DVR, 60m Push Cable, Pan & Tilt Camera

Description
Additional information

Mainline Pan and Tilt Sewer Camera

Our professional-grade mainline push camera system is engineered for precision, reliability, and efficiency. Our pan and tilt push camera delivers exceptional performance for a variety of pipeline inspection applications. The system features a 60m push cable (optional 120m). This long-range solution is designed specifically for mainline inspections in pipes up to 18″ in diameter, ensuring seamless and accurate results every time.

Pan and Tilt Push Camera Head

Engineered for comprehensive pipeline inspections, this Pan & Tilt camera offers 360° pan and 180° tilt functionality, ensuring every detail of pipe conditions and lateral connections is thoroughly captured. With a built-in 512Hz sonde for precise locating and 6 adjustable high-intensity LEDs, it delivers optimal illumination and exceptional performance in any environment.

Camera Dimension	Ø2” x 6”
Camera Type	360° Pan & 180° Tilt
Camera Sensor	1/3″ CMOS, 1.3MP AHD
Sonde	Built in 512Hz
IP Rating	IP68
LEDs	6 Adjustable High Intensity

DVR Control Unit

The system includes a HD 13-inch DVR unit designed to control the Pan & Tilt functionality of the sewer camera. Therefore, ensuring clear and detailed visuals pipeline inspections in challenging conditions. It features text overlay for effective documentation, an on-screen cable feed counter for precise tracking. The DVR unit has a built-in Li-ion battery (up to 8 hours), providing efficiency and convenience for field and remote operations.

LCD Monitor	13″ AHD Color LCD
DVR Control Unit	Record, Image, Text Overlay, Video Output
Keyboard	Bluetooth Keyboard
Battery	8800mA Li-ion (Up to 8hrs)
DVR Protection Case	ABS Impact Resistance

11mm Cable Reel

The mainline push camera cable reel is built with a durable 11mm coaxial fiberglass push cable. It comes in a standard 60m (200ft) length, with an optional upgrade to 120m (400ft) for extended-range applications. The integrated digital cable counter provides precise tracking in meters or feet, while the brake mechanism ensures stability by locking the reel when not in use.

Push Cable	11mm Fiberglass Coaxial
Cable Length	60m (200ft) Optional: 100m (328ft) or 120m (400ft)
Cable Feed Counter	Digital Cable Counter (m/f)

Accessories

The system includes accessories such as 4″ centering skid, carry bag, microphone, Bluetooth keyboard and 16GB USB drive.

Weight	59 lbs
Dimensions	23.5 × 16 × 29 in
Brand	PipeVision Technology
Cable Length	60m (200ft), 120m (400ft)
Control Unit	13" LCD, DVR
Warranty	1 Year
Cable Length	60m (197ft) X 7mm Thick, 60m (197ft) X 9mm Thick, 60m (197ft) X 11mm Thick, 120m (397ft) X 9mm Thick, 120m (397ft) X 11mm Thick
Camera Head Type	Pan & Tilt Camera
Camera Head Diameter	33mm (1.3"), 50mm (2")
